How Does an Ultrasonic Flow Meter Work? Understanding Ultrasonic Flow Measurement Technology

Accurately measuring liquid flow without disrupting pipes or causing pressure drops is a critical challenge across industries like water treatment, oil & gas, and manufacturing. Ultrasonic flow meters solve this by using high-frequency sound waves to measure flow velocity non-invasively. At Micronics Ltd, we specialize in precision ultrasonic flow technology. This definitive guide explains exactly how ultrasonic flow meters work, covering core principles, technologies, components, advantages, and applications. Whether you’re an engineer, technician, or procurement specialist, you’ll understand the science behind this versatile measurement method.

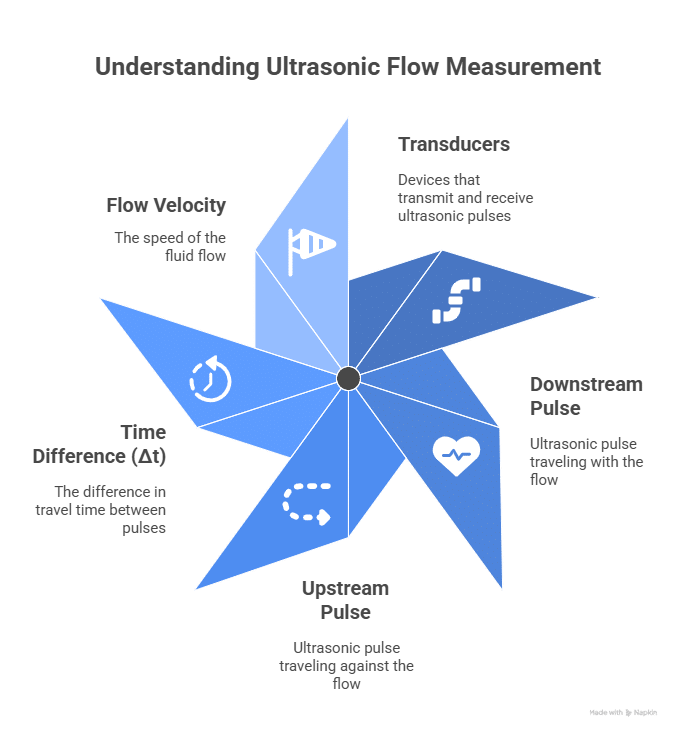

The Science Behind Ultrasonic Flow Measurement: The Time Difference Principle

Ultrasonic flow meters measure flow velocity by detecting tiny differences in the time it takes for sound waves to travel with the flow versus against the flow. Here’s the core principle:

• Two transducers (acting as both transmitters and receivers) are mounted on a pipe.
• One transducer sends an ultrasonic pulse downstream to the other transducer.
• The same transducers then send a pulse upstream.
• The downstream pulse travels faster than the upstream pulse because it’s helped by the moving fluid.
• The flow meter’s electronics measure this time difference (Δt).
• Flow Velocity is directly proportional to Δt: Larger Δt = faster flow.

Two Core Technologies: Transit-Time vs. Doppler Ultrasonic Flow Meters

Not all ultrasonic meters work exactly the same way. Choose the right type for your fluid:

1. Transit-Time (Time-of-Flight) Flow Meters
   1. How They Work: These measure the time difference (Δt) of ultrasonic pulses traveling directly through clean fluid – as explained in the core principle above.
   2. Accuracy: Very high (±0.5% to ±1% of reading is common). Directly measures fluid velocity.
   3. Best For: Clean, homogeneous liquids like water, chemicals, fuels, and oils. Micronics’ transit-time meters feature advanced signal processing for maximum accuracy in demanding applications.
2. Doppler Flow Meters
   1. How They Work: These rely on the Doppler effect. Sound waves reflect off bubbles, particles, or discontinuities in the fluid. The frequency of the reflected wave shifts proportionally to the flow velocity.
   2. Accuracy: Moderate (±1% to ±5% of reading). Depends on sufficient reflectors in the fluid.
   3. Best For: Dirty liquids, slurries, wastewater, or liquids with entrained air/bubbles.

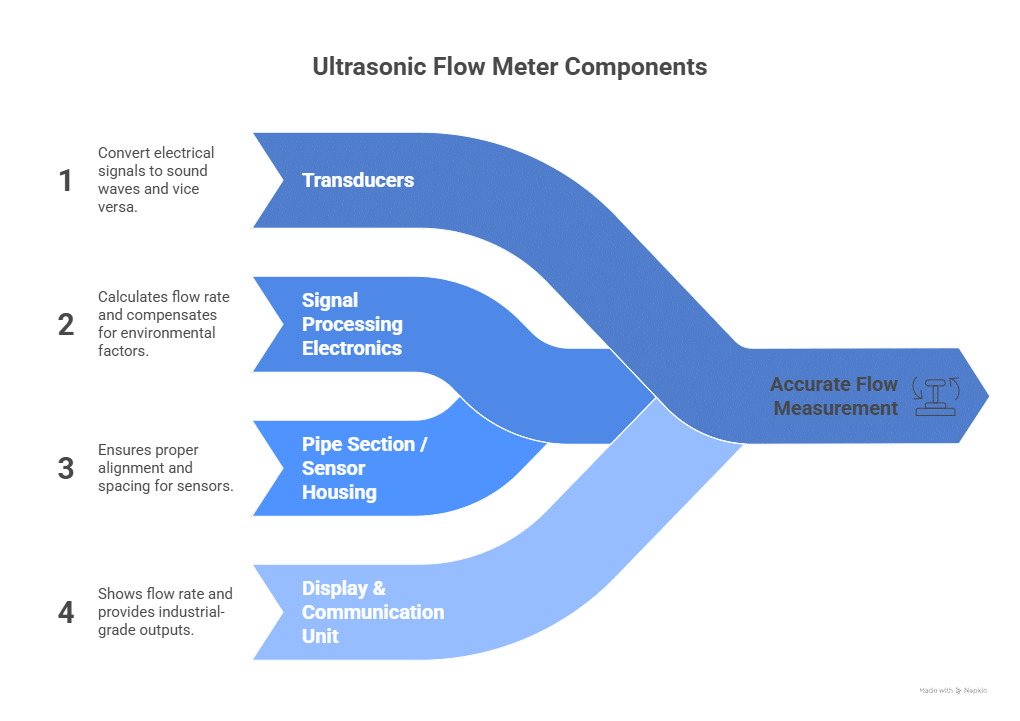

Key Components: What’s Inside an Ultrasonic Flow Meter?

1. Transducers: Mounted on or in the pipe. Contain piezoelectric crystals that convert electrical signals to sound waves and vice versa. Micronics offers both clamp-on (non-invasive) and wetted (insertion/inline) options.
2. Signal Processing Electronics: The “brain.” Calculates Δt or Doppler shift, converts to velocity & flow rate (Q = Velocity x Pipe Area), compensates for temperature/pipe material, and filters noise.
3. Pipe Section / Sensor Housing: Ensures proper spacing and alignment for inline/wetted meters.
4. Display & Communication Unit: Shows flow rate, total volume, alarms. Provides outputs (4-20mA, pulse, digital protocols like Modbus). Micronics meters feature intuitive interfaces and industrial-grade outputs.

Step-by-Step: How an Ultrasonic Transit-Time Flow Meter Measures Flow

Here is the precise sequence for the most common transit-time meters:

1. Transmission Downstream: Transducer A fires an ultrasonic pulse downstream to Transducer B. The fluid’s movement helps this pulse.
2. Measure Downstream Time (t1): The electronics record the time (t1) for the pulse to travel A→B.
3. Transmission Upstream: Transducer B fires a pulse upstream to Transducer A. The fluid’s movement hinders this pulse.
4. Measure Upstream Time (t2): The electronics record the time (t2) for B→A (t2 > t1).
5. Calculate Δt: Δt = t2 – t1
6. Compute Velocity: The flow velocity (V) is calculated using V = (Pipe Constant) x Δt. The pipe diameter/material and sound speed in the fluid are factored in.
7. Calculate Flow Rate: Flow Rate (Q) = V x Pipe Cross-Sectional Area (A).
8. Output & Display: Q is shown on the display, totalised, and sent via outputs to SCADA/PLC systems.

Advantages & Limitations of Ultrasonic Flow Meters

Advantages:

• Non-Intrusive (Clamp-On): No pipe cutting, no pressure drop, reduced risk.*
• High Accuracy (Especially Transit-Time): Ideal for custody transfer and billing.*
• Bidirectional Flow Measurement: Measure forward and reverse flow.*
• Wide Rangeability: Handle varying flow rates well (10:1 to 100:1 ratios common).*
• Low Maintenance: No moving parts to wear out.*
• Large Pipe Sizes: Much cheaper for large pipes (>6″) than alternatives.*
• Portable Options: Ideal for temporary monitoring/billing verification.

Limitations:

• Installation Sensitivity: Requires proper spacing/alignment and straight pipe runs (10D upstream / 5D downstream typical).
• Fluid Constraints: Transit-time needs clean liquids; Doppler needs particulates/bubbles.
• Higher Initial Cost: More expensive than basic mechanical meters (but lower lifetime cost).

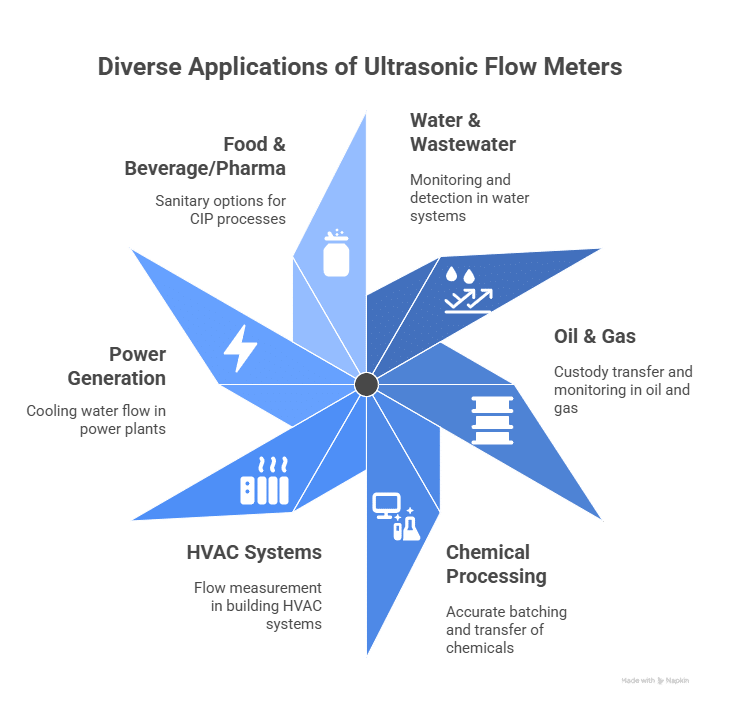

Key Applications Where Ultrasonic Flow Meters Excel

Ultrasonic meters are used where accuracy, non-invasion, or large pipe sizes are critical:

• Water & Wastewater: Pump monitoring, leak detection, inflow/outflow measurement (Transit-Time for clean water; Doppler for sludge).
• Oil & Gas: Custody transfer of refined products (diesel, gasoline), flare gas monitoring, chemical injection.
• Chemical Processing: Accurate batching, transfer of corrosive solvents/acids.
• HVAC Systems: Chilled/heating water flow in large buildings.
• Power Generation: Cooling water in condensers/towers.
• Food & Beverage/Pharma: Sanitary clamp-on options for CIP processes.

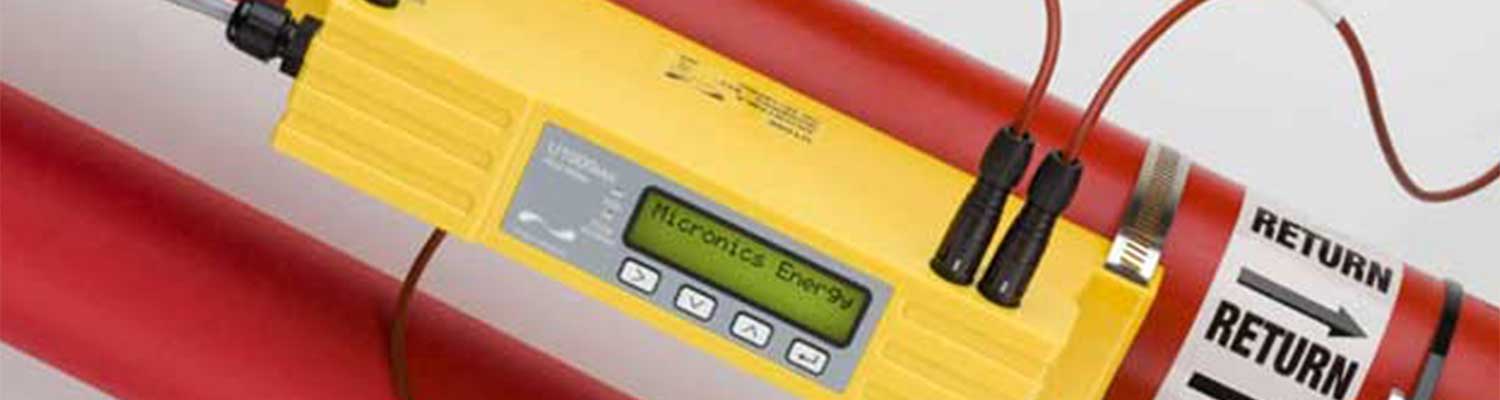

Micronics Ultrasonic Flow Meters: Precision Solutions Built for Reliability

Now that you understand how ultrasonic flow meters work, discover how Micronics’ engineering expertise delivers unmatched performance:

• Advanced Transit-Time Technology: Patented signal processing for turbulence rejection and low-flow sensitivity.
• Robust Clamp-On & Inline Options: Solutions for temporary or permanent installation up to DN2000+ pipe sizes.
• Industry-Leading Accuracy: Models achieving ±0.5% accuracy for the most demanding applications.
• Global Calibration Standards: Meters traceable to national standards.
• Intuitive Software & Support: Easy setup, diagnostics, and data logging.

Ultrasonic Flow Meter FAQs

Conclusion: Precision Flow Measurement Simplified

Ultrasonic flow meters leverage the time-difference of sound waves to provide accurate, non-invasive flow measurement for liquids. By understanding the core principles of transit-time and Doppler technologies, you can select the optimal solution for your application. Micronics Flow Meters combines robust engineering, advanced signal processing, and deep industry expertise to deliver reliable flow data you can trust – helping optimise processes, reduce downtime, and ensure billing accuracy.
