Ultrasonic Flow Meters

What is an Ultrasonic Flow Meter?

An ultrasonic flowmeter is a device used for measuring the flow rate of liquids and gases with ultrasound technology. It operates on the principle of measuring the time taken for ultrasonic waves to travel through the fluid from one transducer to another. The flow rate of the fluid is then calculated based on the known distance between the transducers and the measured time delay.

How does an ultrasonic flow meter work?

Ultrasonic flowmeters consist of two transducers, one acting as a sender and the other as a receiver. The sender sends out high frequency sound waves into the fluid, and the receiver detects the waves after they have travelled through the fluid. The time taken for the waves to travel from the sender to the receiver is then used to calculate the flow rate of the fluid.

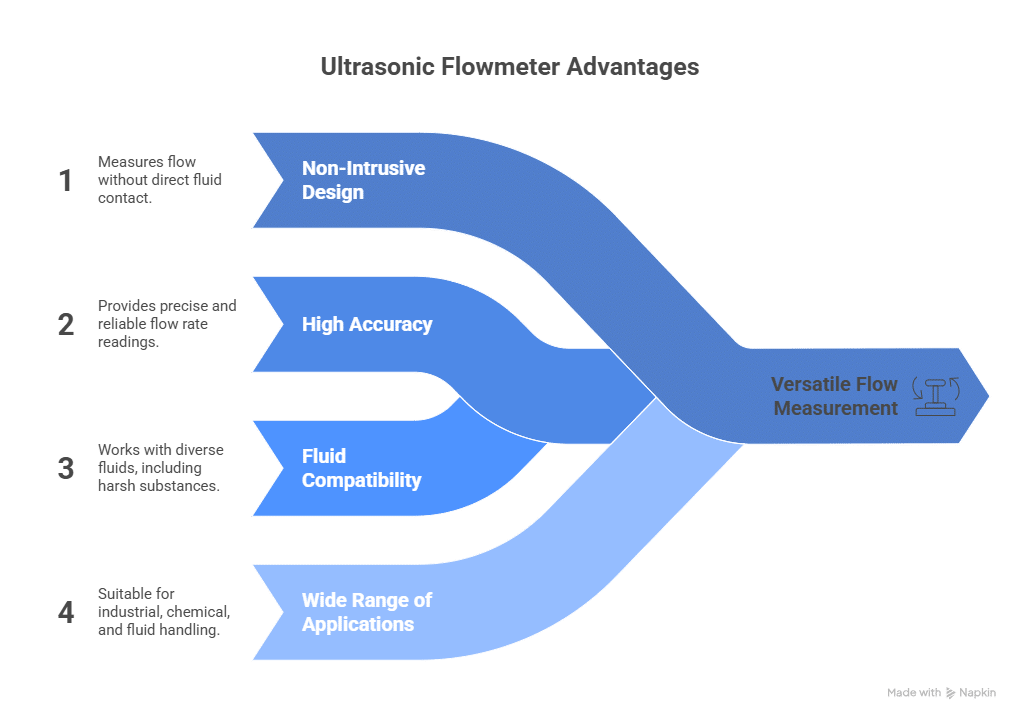

Ultrasonic flowmeters are great because they don’t need to touch the fluid they are measuring. This is helpful in industries like food and pharmaceuticals where inserting a probe into the fluid is not possible or wanted. They can also work with many different types of fluids, even ones that are harsh or abrasive. This makes them a good choice for tough industrial settings.

Further advantages of ultrasonic flowmeters is their high accuracy and stability, which makes them suitable for use in critical applications such as metering of chemicals, fuel, and gases. They can also be used for flow measurement in pipes with different diameters and shapes, and can handle a wide range of flow rates.

Read our summaries below for further advantages, however to summarize, ultrasonic flowmeters are a versatile and accurate solution for measuring the flow rate of liquids and gases. Their non-intrusive design, high accuracy, and ability to handle a wide range of fluids make them suitable for a variety of applications, including industrial processes, chemical metering, and fluid handling

Flow Meter Types and Applications

What are the types of Flow Meter?

The two flow meter types, Transit Time (Time of Flight) and Doppler, are both available in a clamp-on meter style with transducers which are used to detect and then measure flow rates from the outside of the pipework, without any interruption to flow or process.

Ultrasonic clamp on flow meters readings are altered by acoustic properties of fluids and impacted by density, viscosity, temperature and suspended particulates, all dependent on the type of flow meter. Along with this, Ultrasonic flow transmitters are devices that measure the flow rate of liquids using ultrasonic technology and convert this data into standardised signals for monitoring and control purposes. At Micronics, our ultrasonic flow transmitters offer precise, non-invasive measurements, making them ideal for applications where flow disruption is not an option.

Advantages of Ultrasonic Flow Meters

What are the Advantages of an Ultrasonic Flow Meter?

• They are non-invasive, and therefore can detect in-situ flow rates from outside the pipework, with no interruption to flow or the process.
• These flow meters require little maintenance, as the sensors will not contact with the flow, as they have no moving parts, it means no obstruction and no general wear and tear.
• They vary greatly in purchase price but can often be very inexpensive to use and certainly to maintain, again due to the fact they do not use moving parts, unlike mechanical flow meters.
• The ideal tool for potable water applications, clamp-on ultrasonic flow meters can also be used in wastewater treatment and collection applications.

What are the Applications of an Ultrasonic Flow Meter?

A typical application for an Ultrasonic Flow Meter is measuring flow of liquid in full pipes, also measurement of liquids such as water, wastewater, acids and solvents, chemicals and hydrocarbons and oils, also to monitor and control  heating, ventilation and air conditioning systems. They are perfect for applications where flow disruption is simply not an option.

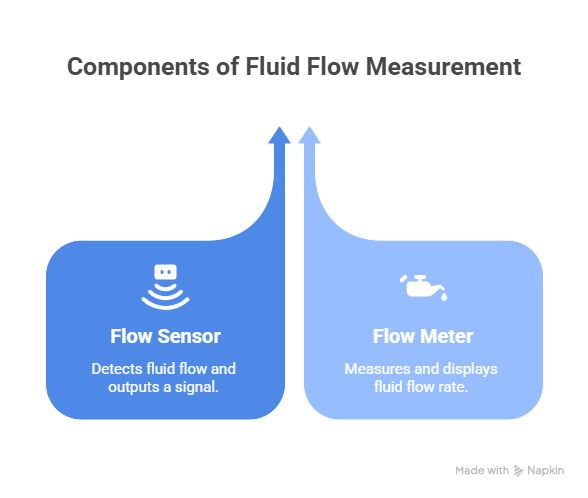

Is a Flow Sensor the same as a Flow Meter?

While the terms “flow sensor” and “flow meter” are sometimes used interchangeably, they are not exactly the same thing. A flow sensor is a device that is used to detect the presence and rate of flow of a fluid. It typically generates an electrical signal that is proportional to the flow rate of the fluid. Flow sensors can be used in a wide range of applications, from simple water flow sensing in a domestic plumbing system to more complex applications such as air flow sensing in HVAC systems.

On the other hand, a flow meter is a device that is used to measure and display the flow rate of a fluid. It typically consists of a flow sensor, which detects the flow rate of the fluid, and a display unit, which shows the flow rate in a readable format. Flow meters can be used in a wide range of applications, such as monitoring the flow rate of fluids in industrial processes, measuring the flow of fuel in vehicles, and monitoring the flow of fluids in medical equipment.

So, while a flow sensor is an important component of a flow meter, a flow meter is a more comprehensive device that includes a sensor as well as a display unit for reading and displaying the flow rate of a fluid.

Ultrasonic Flow Transmitters

Micronics ultrasonic flow meters are not just measurement devices, they also function as reliable ultrasonic flow transmitters, delivering real-time flow data via industry-standard outputs such as 4–20 mA, pulse, and Modbus. Thanks to their non-invasive clamp-on design, installation can be carried out without interrupting service or cutting into pipework, significantly reducing downtime and associated costs. This makes them particularly valuable in applications such as heating and cooling systems, water distribution networks, industrial process flow, and energy consumption monitoring across a wide range of sectors.

With models like the U1000MKII-FM and UF3300, Micronics combines accurate flow measurement with dependable signal transmission in a single, compact solution. Whether you’re monitoring chilled water or analysing process flow, our ultrasonic flow transmitters offer consistent performance, minimal maintenance, and seamless system integration.

Optimise Control with Our Flow Switches

Integrate our Flow Switches with your ultrasonic flow meter setup for enhanced control and precision in fluid monitoring.

Ultrasonic clamp on flow meters  – See Our Full Range | Micronics Flow Meters on LinkedIn

In summary, volumetric flow and the Doppler effect are important concepts in the measurement of liquid flow. Ultrasonic sensors are commonly used to measure the velocity of a fluid, and there are different types of ultrasonic flow meters that work based on different principles. Doppler ultrasonic flow meters are used to measure the velocity of a fluid by detecting the frequency shift caused by the motion of particles in the fluid. Transit time flow meters, on the other hand, measure the time it takes for an ultrasonic signal to travel upstream and downstream in a fluid. Both types of ultrasonic flow meters require specific flow conditions to work accurately. By measuring the velocity of the liquid, these meters can calculate the volumetric flow rate of the fluid.
