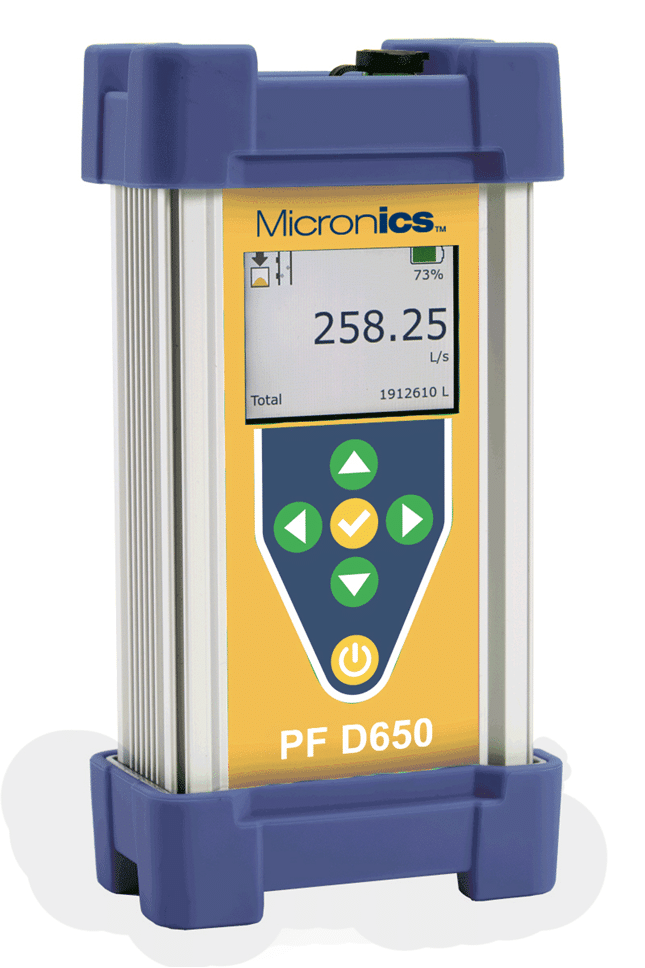

Portable ultrasonic doppler flow meter measurement solutions, clamp on and non-invasive, for closed pipe applications. Uses the doppler ultrasonic flow meter principle for no interruption to process or downtime whilst the instrument is being used.
Pipe Range:– 12.7mm to 4600mm.
Transducer Temp Range:– -40°F to 150°C (-40° to 300°F)
Power:– 100 –240VAC 50/60Hz.
Internal Rechargeable Battery:– 15 hours from full charge.
Programming:– via 5 key input controller.
Display:– Colour TFT LCD, IPS type – displays flow rate, totalizer, operating mode and calibration menu.
Data Logger:– Programmable 12 million data point capacity, time and date stamped or formatted reports including total, average, minimum, maximum and times of occurrence.
Sensitivity:– fully adjustable.
Damping:– fully adjustable.
Outputs:– Log files, daily log files, parameter settings files, and waveform capture files via USB-C flash drive (included).
Doppler flowmeters are a type of ultrasonic flow meter. Using a scientific principle called the Doppler effect that measures the volumetric flow of liquids through a pipe. These Doppler flow meter are clamped onto the outside of the pipe wall, so that it does not disrupt any flow, as is required for other types of meters.
